Description
Features
- Remote-Controlled Barrier for Reserved Parking
- UniPark allows users to reserve and control access to a single parking space via radio (remote) control.

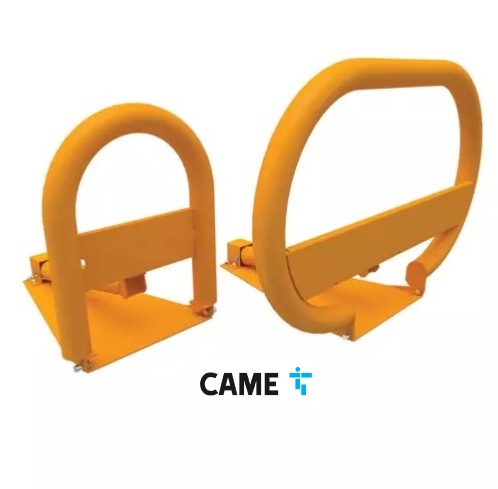

- Two Size Options for Different Space Widths
- Available in two variants:
- Small (ARK 1) suited for narrower spaces (up to about 2.0 m wide)
- Large (ARK 2) designed for wider or adjacent spots (up to ~2.45 m)
- Low-Profile, Durable Construction
- Built with a 24 V DC motorized base that lies just 80 mm high when folded down.
- Constructed of galvanized steel, powder-coated (RAL 1028), ensuring high visibility and robustness.
- Emergency Battery Operation
- Equipped with a battery-powered emergency mode, allowing operation even during a blackout or power failure.5. Safety Sensors
- Features an amperometric obstacle-detection system and limit switches, ensuring it stops or reverses if it encounters an obstruction.6. Expandable Multi-Bay Capability
- A single control panel (ZL22) can manage up to 4 UniPark units using expansion modules (LM22), which helps to contain costs in installations with multiple parking savers.
- Technical Performance
- Power Supply: 230 VAC input, converting to 24 V DC for the motor
- Power Consumption: ~20 W, 1.7 A draw
- Duty Cycle: Designed for heavy‑duty service
- Protection Rating: IP54 (dust/splashes)
- Operating Temperature: –20 °C to +55 °C
- Crushing Resistance: approx. 2.5 kg/cm²
- Opening Time: around 10 seconds
- Ease of Installation
- Features a simple and practical base for ground mounting—making installation straightforward in various conditions.
