Showing all 3 results

Centsys D2 slide gate motor

Ideal for general domestic applications for gates weighing up to 250 kgs.

The D2 Turbo has various useful features and functions, all easily-accessible from a user-friendly dial-based setup system:

  • Opening and closing safety beam inputs
  • High-security cleared-beam Auto close in conjunction with safety beams
  • Multiple Modes of Operation: Standard Mode, Open only Mode, Reversing Mode, and two Pre-flashing Modes
  • Automatic closing with adjustable time delay, and pushbutton override
  • Remote gate-status indicator (gate position, power failure, low battery, multiple collision detection
  • Pedestrian Opening3 (with adjustable Auto close time)
  • Courtesy/Pillar-Light timer (fixed duration), with pre-delays and two Pre-flashing Modes4
  • Selectable gate speed modes – Low Speed/High Speed (High Speed is the default)
  • Onboard multichannel code-hopping receiver with the ability to learn transmitter buttons



Download Brochure
Download Manual

Centsys D5 slide gate motor

With a capacity to operate gates weighing up to 500 Kgs the D5 slide gate motor meets most challenges head on.  Advanced features of the D5-Evo or D5-Evo Low-Voltage logic controller include:

  • Interactive graphical user interface via a backlit LCD display
  • Automated setup of gate endpoints (limits)
  • Fail-safe collision detection and auto reverse (adjustable sensitivity)
  • Smooth, adjustable start/stop (ramp up/ramp down)
  • Multiple operational modes
  • Selectable, adjustable Auto closing
  • Pedestrian (partial) opening
  • Positive Close Mode
  • Independent safety inputs for opening and closing beams
  • Automatic beam test for both open and closing beams
  • Advanced beam alarm functions
  • Advanced lightning/surge protection
  • Timed courtesy light output
  • Multiple pre-flashing modes
  • Independently adjustable motor speed in both opening and closing directions
  • Onboard NOVA Code-hopping radio receiver with full channel mapping capability
  • Onboard ChronoGuard timer (patent pending) for auto-activation of various inputs & outputs
Download Brochure
Download Manual
Motor Setup Video

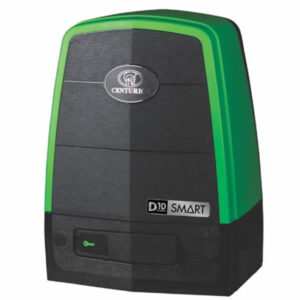

Centsys D10 slide gate motor

The D10 is a heavy duty sliding gate operator designed to open and close industrial sliding gates weighing up to 1000Kg.

Advanced features of the D10/D10 Turbo logic controller include:

  • Interactive graphical user interface via a backlit LCD display
  • Automated setup of gate endpoints (limits)
  • Fail-safe collision detection and auto reverse (adjustable sensitivity)
  • Smooth, adjustable start/stop (ramp-up/ramp-down)
  • Multiple operational modes
  • Selectable, adjustable Auto closing
  • Pedestrian (partial) opening
  • Positive Close Mode
  • Independent safety inputs for opening and closing beams
  • Automatic beam test for both opening and closing beams
  • Advanced beam alarm functions
  • Advanced lightning/surge protection
  • Timed courtesy light output
  • Multiple pre-flashing modes
  • Independently adjustable motor speed in both opening and closing directions
  • Onboard CENTURION rolling code radio receiver
  • Onboard ChronoGuard (patent pending) timer for timed activation of physical inputs or outputs
Download Brochure
Download Manual
